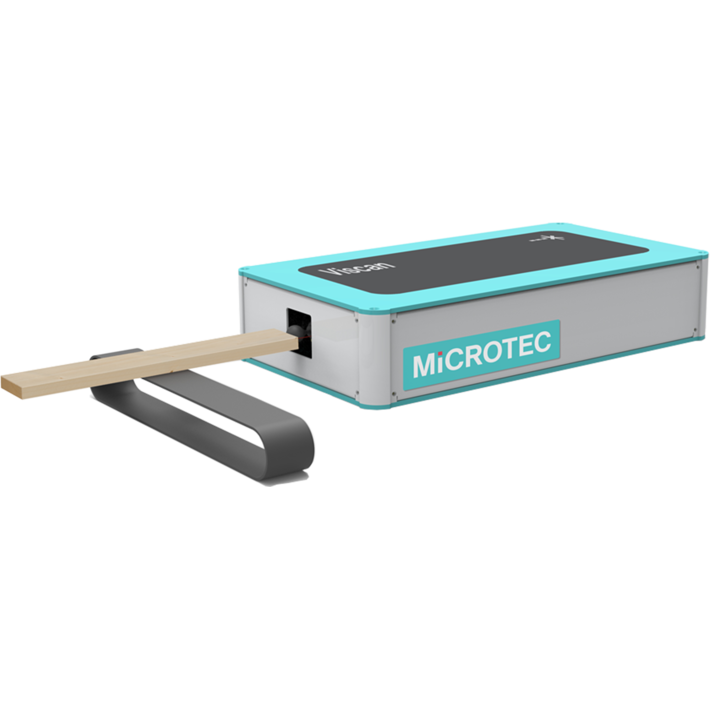

Lumber Scanning
Viscan
The expert in strength grading
Viscan Strength Grader is the best in class vibration measurement to determine the MOE of lumber. It fulfills all relevant strength grading certifications worldwide. Viscan measures the board's resonance frequency thanks to a high-performance laser vibrometer that works independently of environmental interferences such as noise.
Customer Benefits
- Worldwide-accredited strength grading solution that is compliant to most grading standards
- Determines MOE of lumber accurately and reliably
- Enables automatic sorting in certified strength classes
- Grades green or dry lumber non-destructively and independently of interfering ambient conditions
- Repeated measurement accuracy of over 99%
Overview chart
Technology
- Optical Laser Interferometer
Technical Data
- Speed up to 240 lugs/min (according to EN 14081 the conveyor speed is limited to 180 lugs/min)
- Width up to 300 mm-11.8"
- Thickness up to 120 mm-4.72''
Applications
- Strength grading
Features
- MOE
- MOR
Certifications
- EN 14081
- ALS
- MSR
Viscan Models

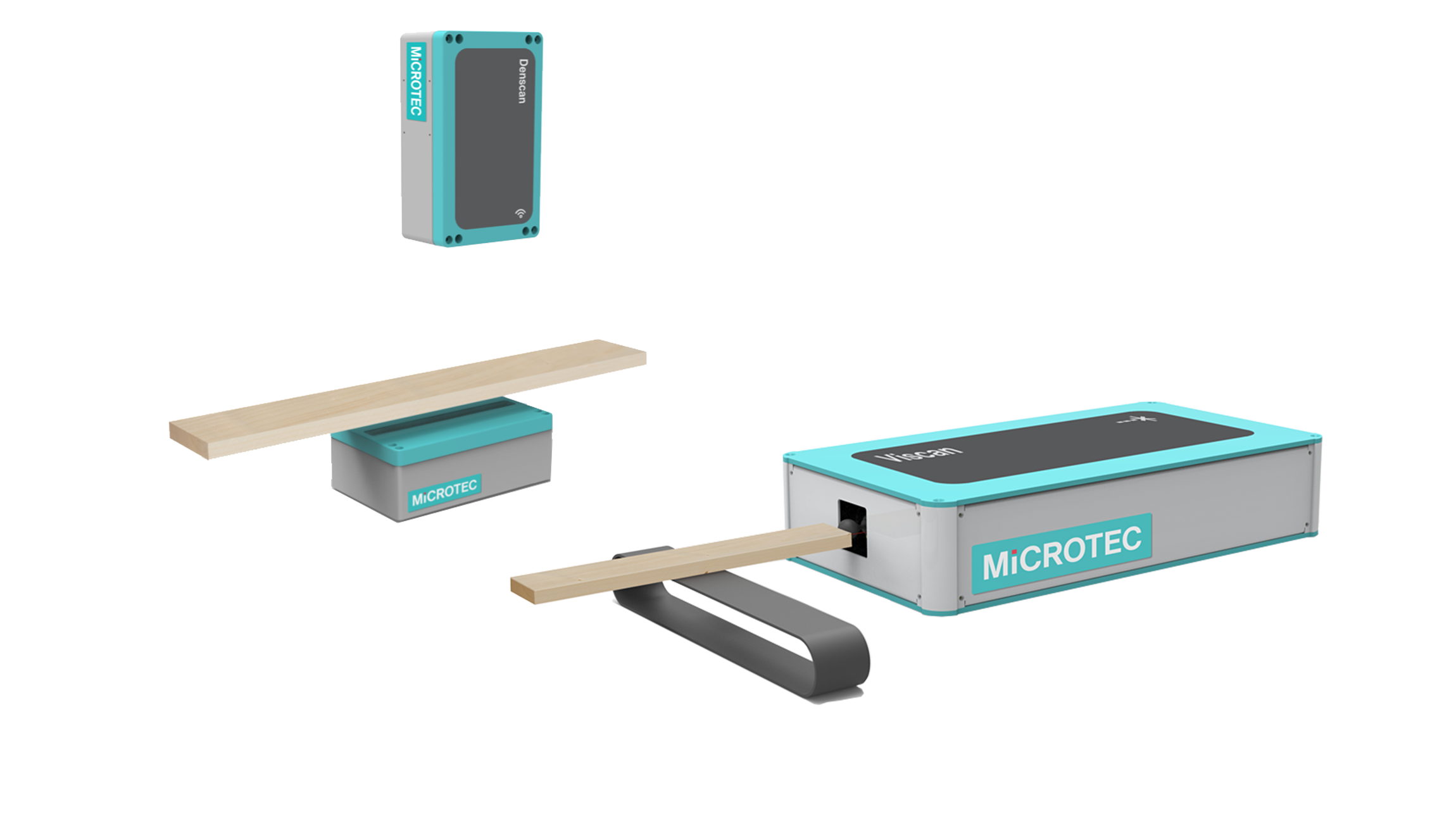

Viscan Plus
- Frequency Measurement
- Density (Combination with Denscan)
- Certified for Strength Grading

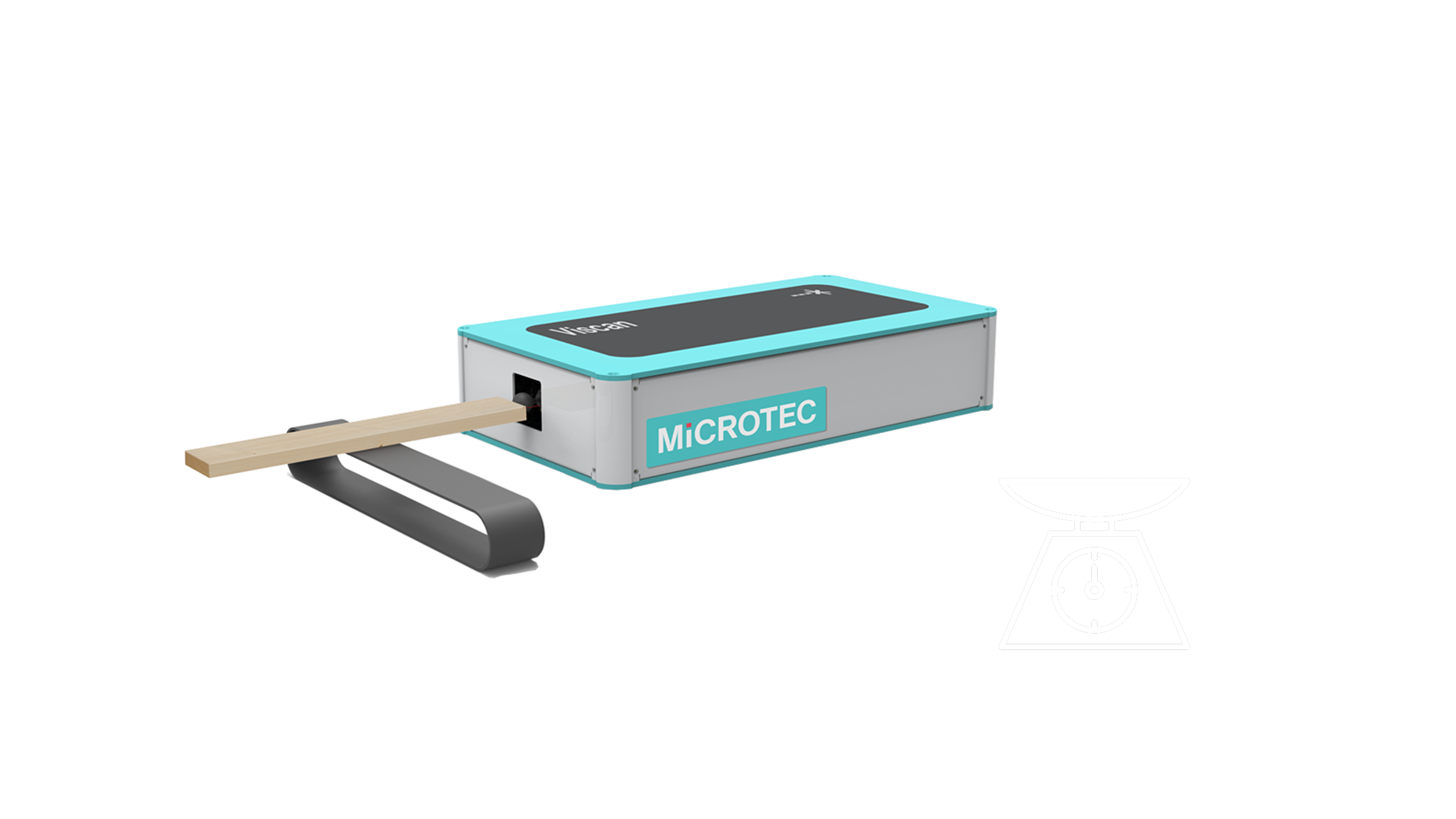

Viscan Compact
- Frequency Measurement
- Density (Combination with industrial scale)
- Certified for Strength Grading
...
Contact form
The contact form wasn't loaded due to your privacy settings.
Product references Viscan
Products references
Goldeneye 800: The End of Fear Sorting
Products references

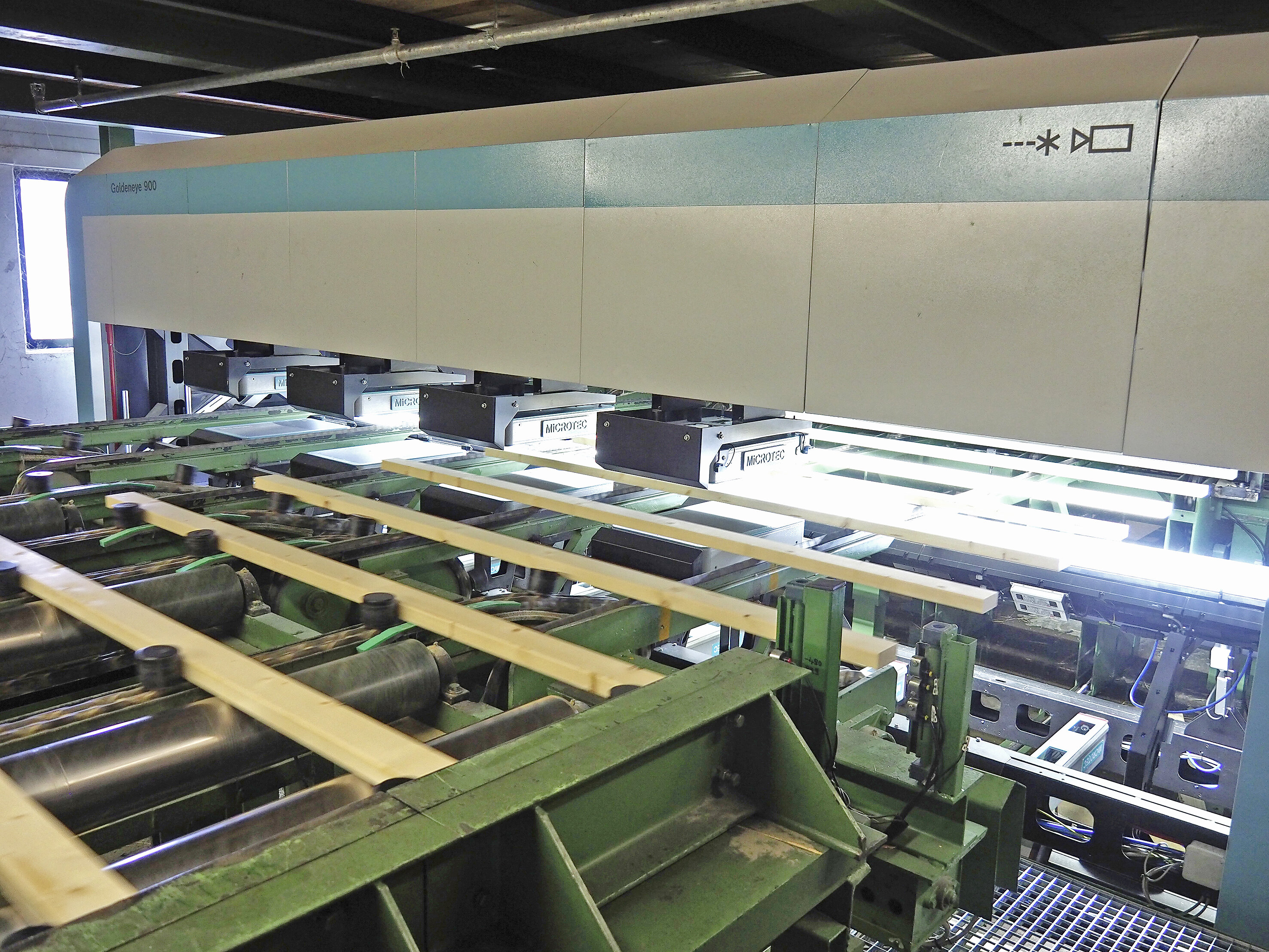

Cross-Feed Scanning
Products references
Brazil's industry leader upgrades with no.1 transverse lumber scanner
Products references
Peak performance transversal scanning
Products references
Fastest lumber scanner in the world
Products references

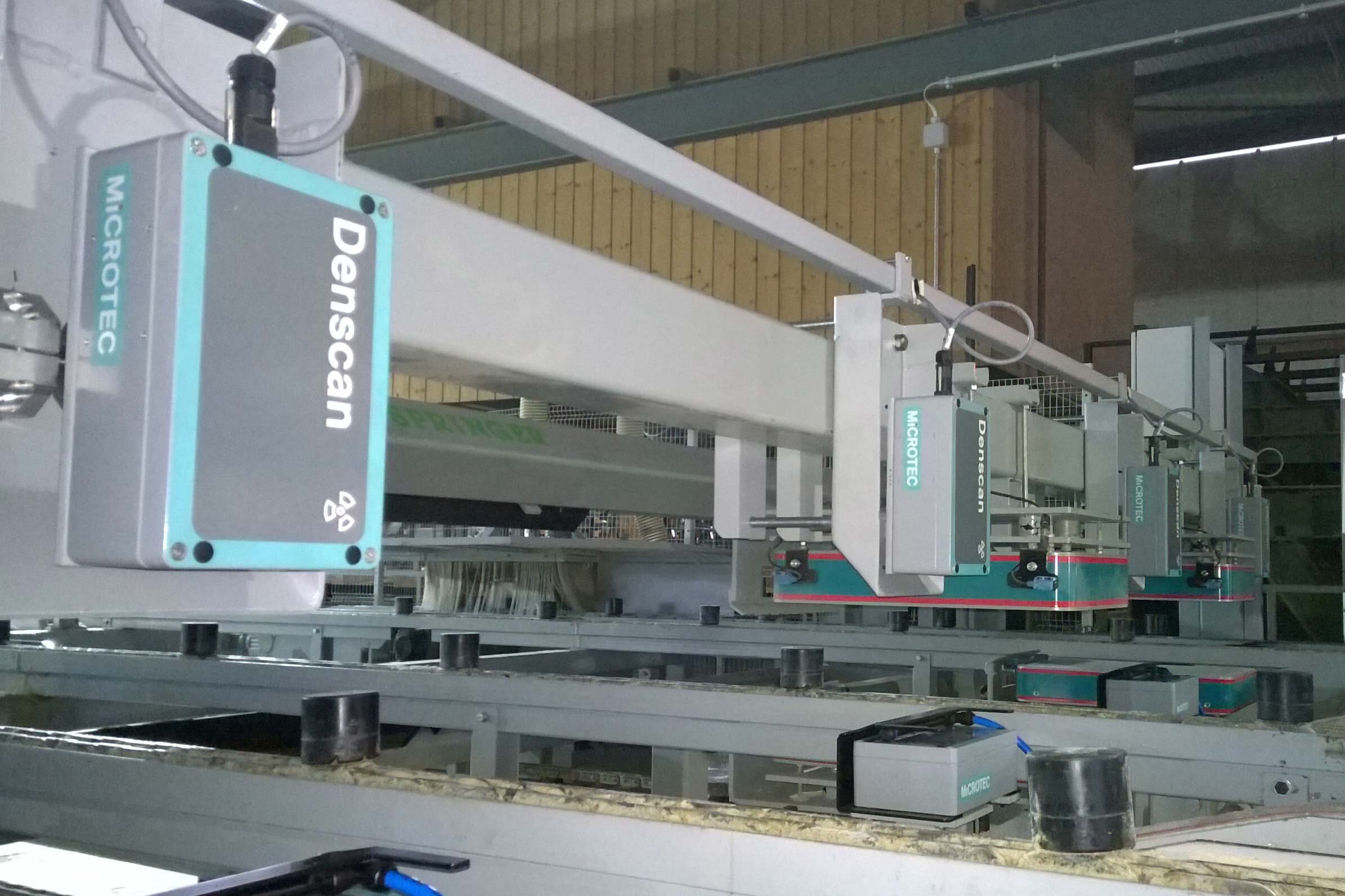

Despond sawmill grades with Viscan Plus
Products references
First Viscan in Japan
Products references
Norra Timber measures wood moisture according to EU standards
Products references

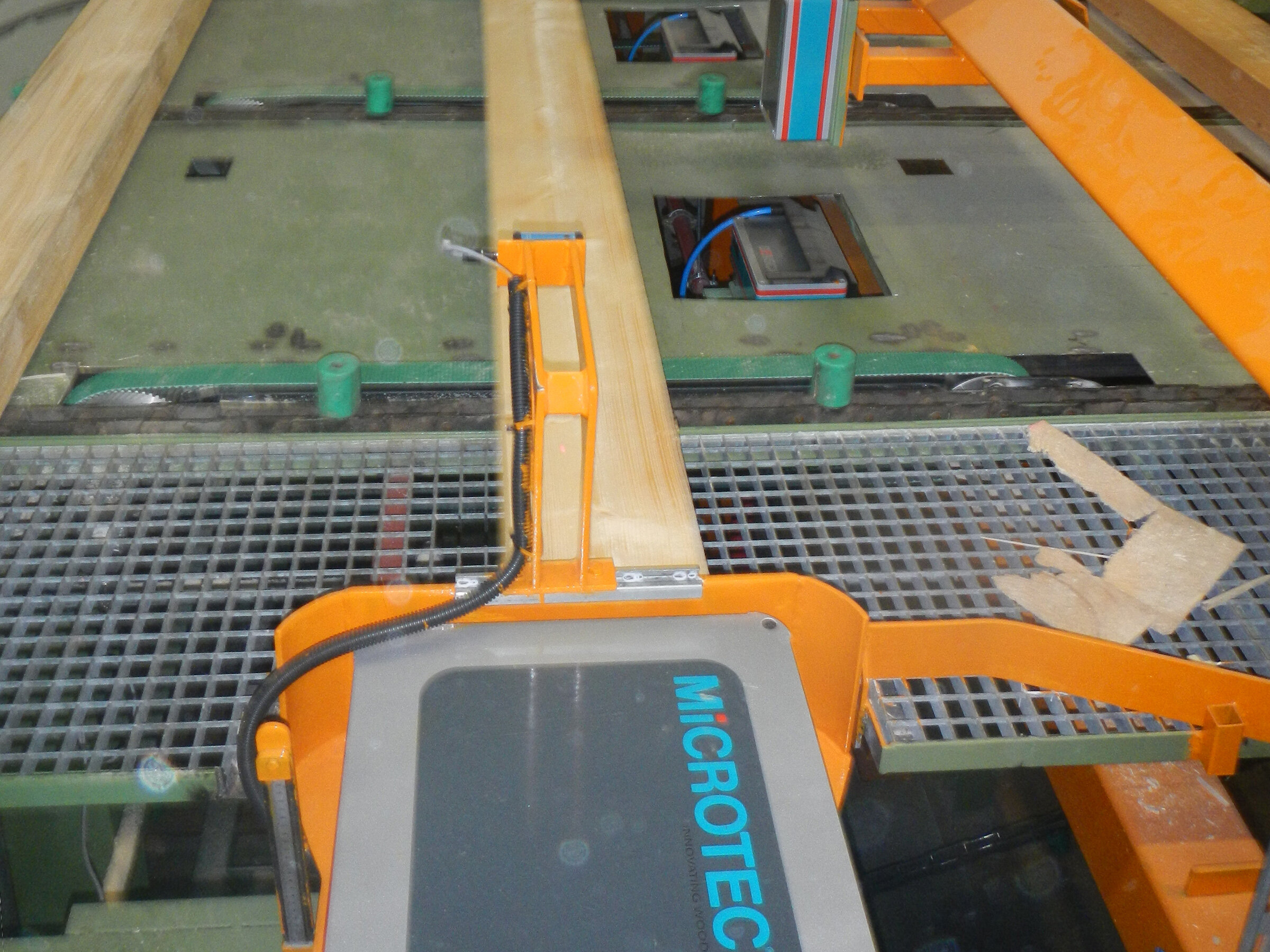

Viscan Plus for green sorting in strength classes
